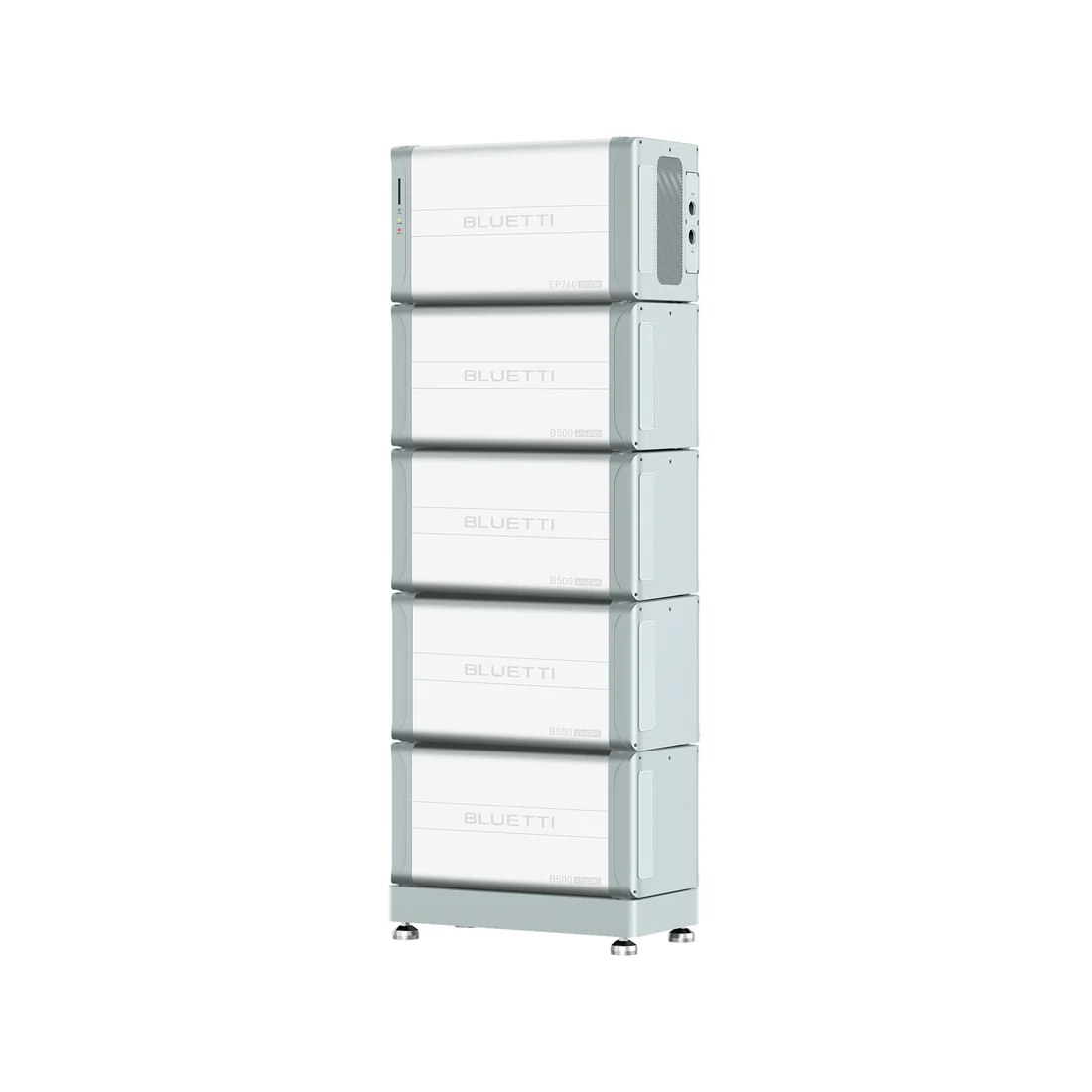

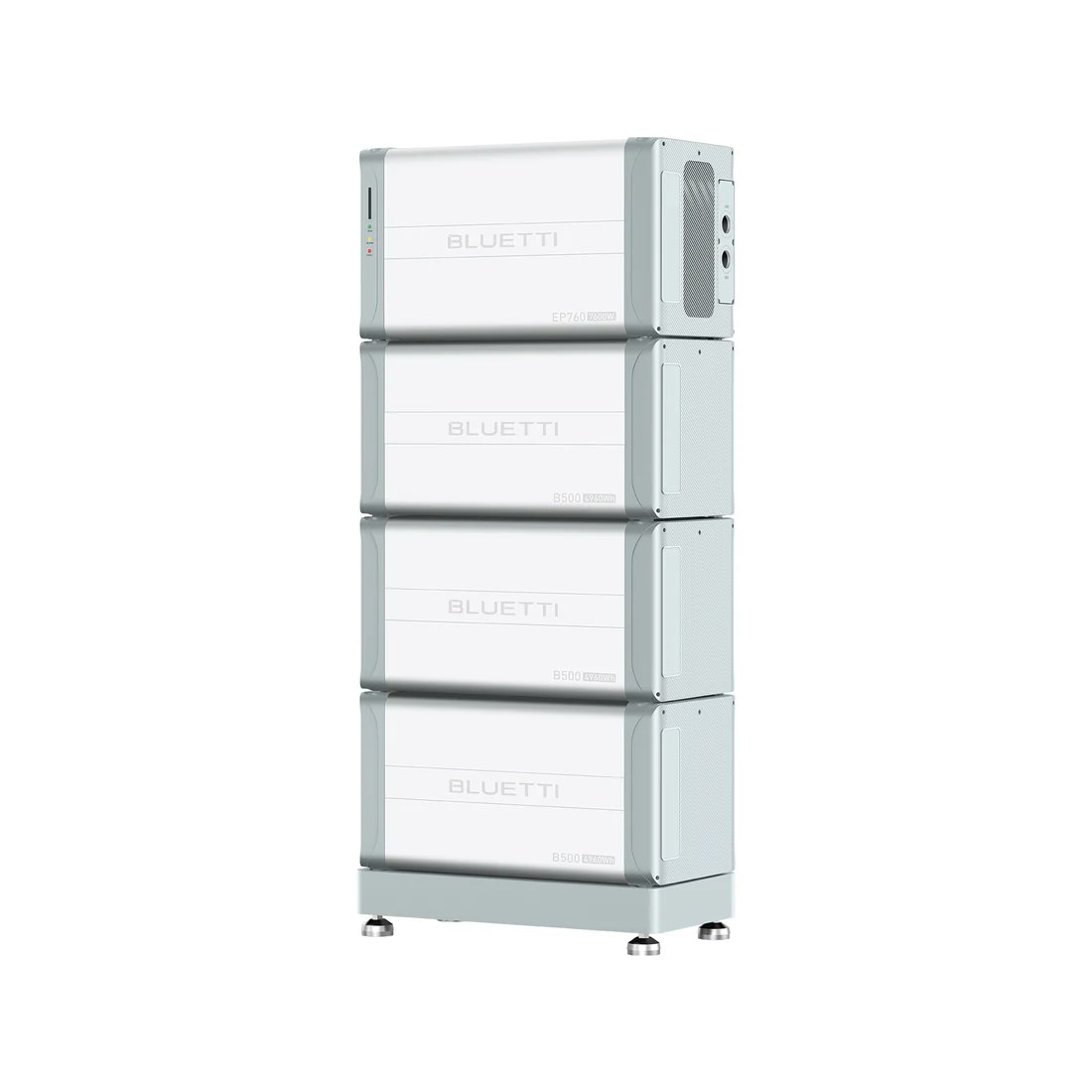

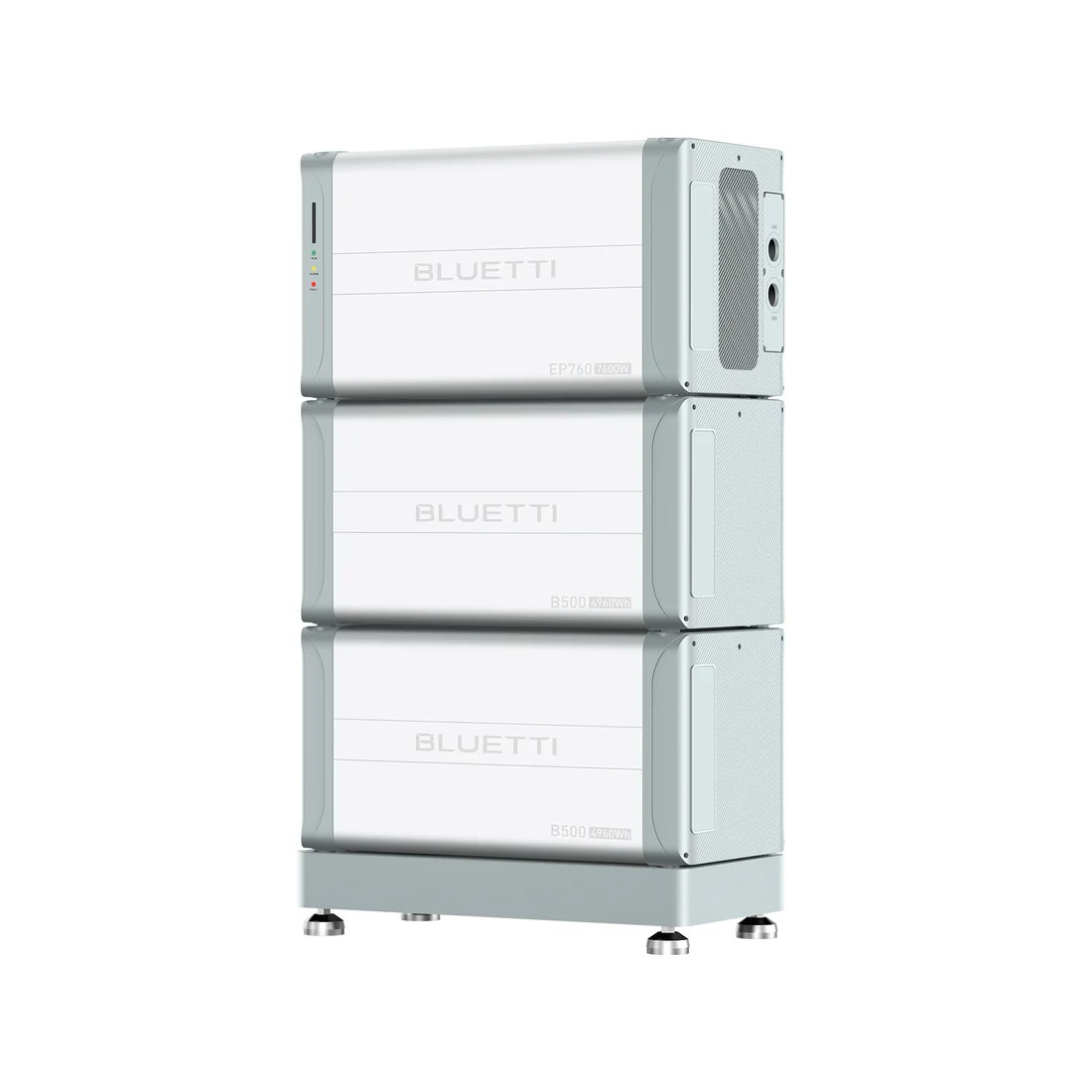

BLUETTI EP760 + B500 Home Battery Backup

The BLUETTI EP760 isn't just an energy storage system; it's key to slashing energy costs during peak hours, securing uninterrupted power during outages, and embarking on a journey toward an off-grid living style. The easy installation of EP760 ensures great convenience to access power freedom without spending a lot of time and money.

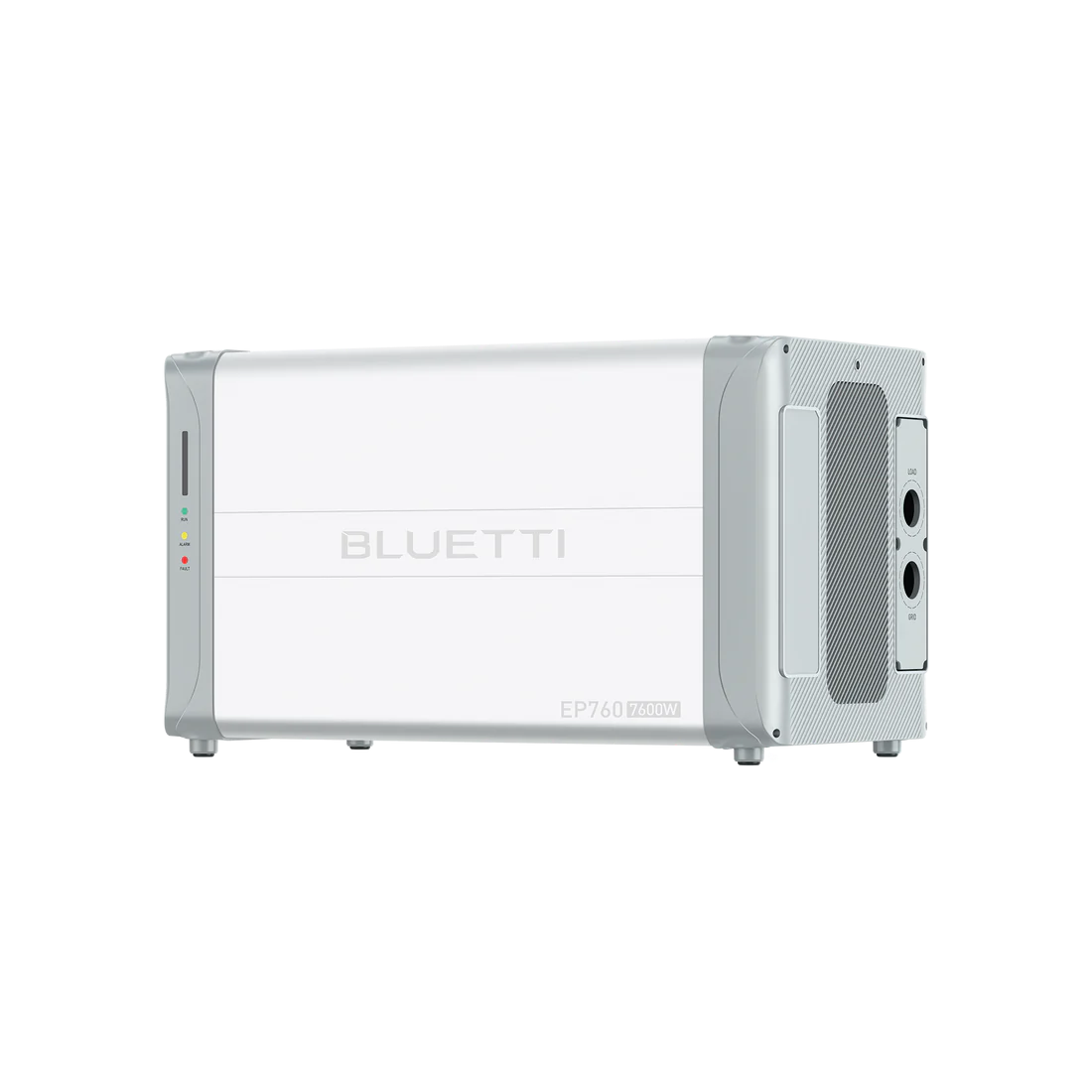

EP760 Inverter (General)

Capacity :

9,9kWh~19,8kWh
(W/ 1 EP760 & 2-4 B500)

Dimensions (L*W*H):

25,0 × 12,8 × 14,6inch /
636 × 325 × 370mm

Net Weight:

97lbs / 44kg

App Control:

BLUETTI App (WiFi/Bluetooth)

Warranty:

10 Years

IP Rating :

IP65

Noise:

≤50 dB (A)

Working Temperature:

-4℉~104℉ / -20℃~40℃

Wiring:

L / N / PE

Output Voltage:

230V

Input Frequency:

50Hz

UPS Time:

<10ms

Output Power :

7.600W

Inverter Certificates:

CE / IP65 / UKCA

Feed-in Tariff:

Yes

Grid Connection:

On-Grid / Off-Grid

EP760 (PV INPUT)

MPPT Channels:

9.000W
(3 strings: 3.000W + 3.000W + 3.000W)

MPPT Voltage Range :

150V-500V

MPPT Efficiency:

97% Max.

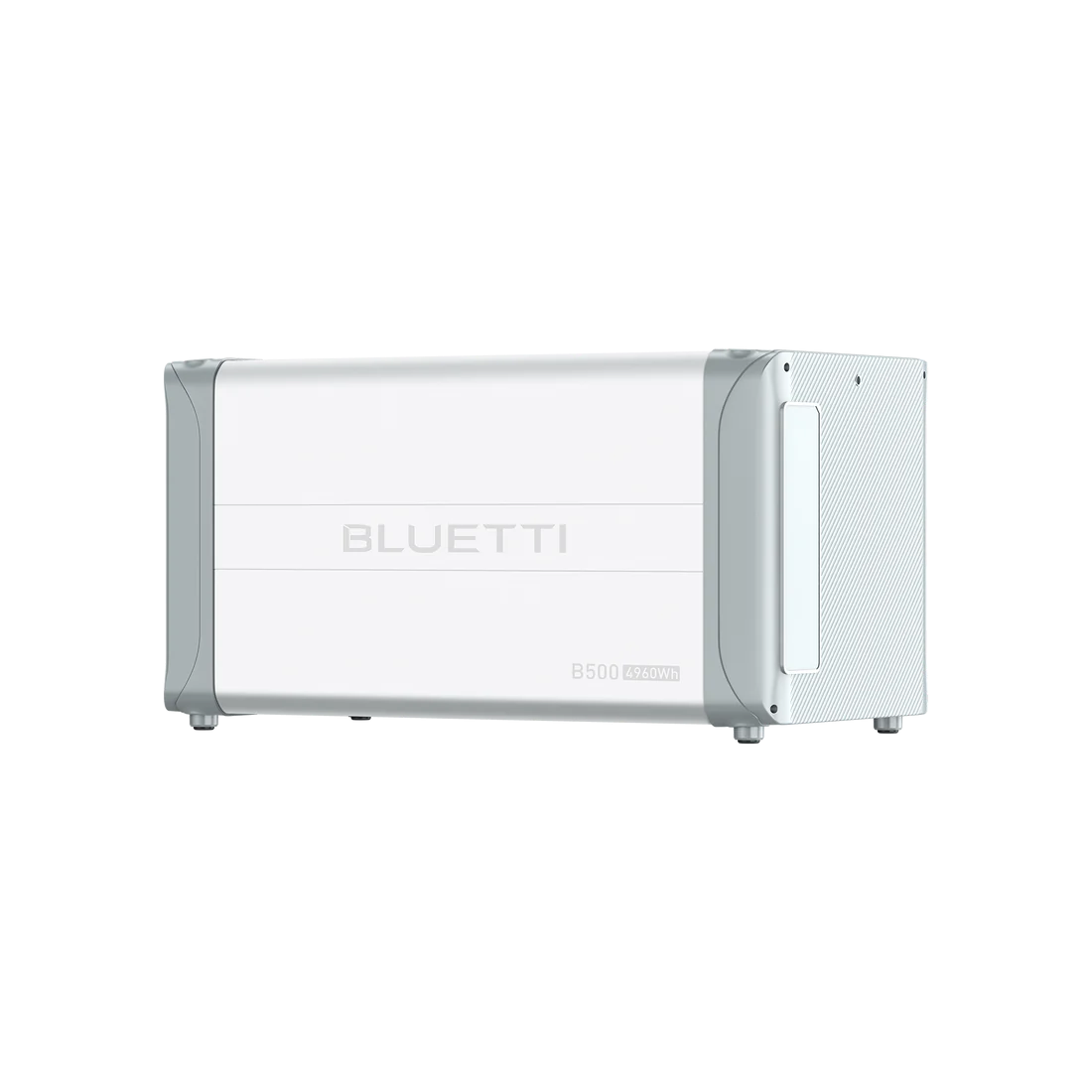

B500 (General)

Dimensions (L*W*H):

25,0 × 12,8 × 13,3inch / 636 × 325 × 338mm

Net Weight:

127,87lbs / 58kg

Protection Grade:

-4℉~104℉ / -20℃~40℃

Battery Certificates:

CB / CE / FCC / ICES / IP65 / PSE / RCM / UKCA / UL1973 / UL9540A / UN38,3-2022

B500 (Battery)

Battery Type:

LiFePO₄

Rated Capacity:

4.960Wh

Depth of Discharge (DoD):

90%

Short-circuit Protection:

Yes
